Zoho CRM Phone Integration: AI Answering Setup Guide 2026

Why 300,000 Zoho CRM Users Need Better Phone Integration

Your phone rings. A potential lead from your website wants to talk. You're in a meeting, and the call goes to voicemail.

They don't leave a message. They call the next company.

This happens constantly. We analyzed 13,175 business calls over 7 months and found that 74.1% went completely unanswered. For a small business receiving 42 calls per month, that's 31 missed opportunities - worth $31,122 per month in lost revenue at a 20% close rate and $5,000 average deal.

Zoho CRM powers over 300,000 businesses globally, most of them small teams using the Free or Standard plans. These teams face two problems:

Missing inbound calls when busy or after-hours (74.1% unanswered rate)
Manual call logging that wastes 30% of sales time on data entry

Zoho offers native telephony through Zoho Voice, but it has limitations: calls only work in web apps (not mobile), requires Professional plan ($23/user/month) for full features, and still requires humans to click-to-dial or manually answer.

This guide shows how to integrate AI answering with Zoho CRM to automatically capture every call, populate the right modules (Leads, Contacts, or Deals), and trigger workflow automation - all while keeping costs low for SMBs.

Why Zoho CRM Users Need Automatic Phone Integration

The Module Management Burden

Zoho CRM organizes customer data across three core modules:

Leads: Potential customers (website form fills, trade show contacts, cold outreach)
Contacts: Converted customers you're actively working with
Deals: Sales opportunities with dollar values and stages

When a call comes in, you need to decide: Is this a new Lead? An existing Contact calling back? A Deal follow-up?

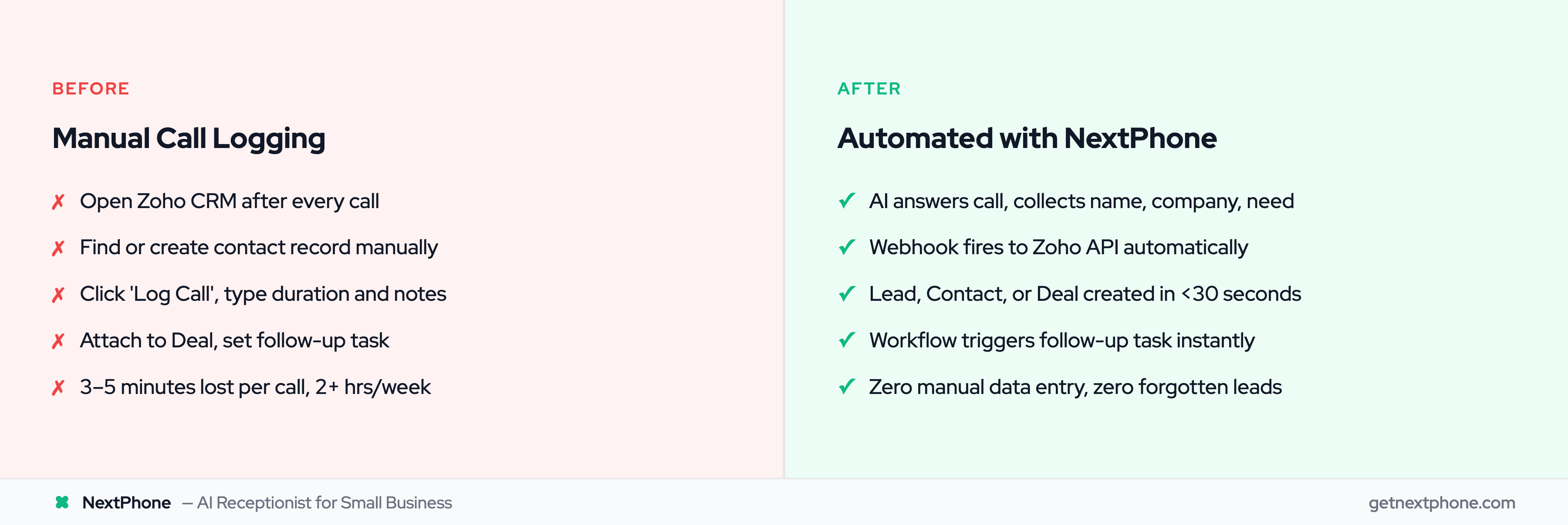

Then you need to log it manually:

Open Zoho CRM
Find the record (or create new Lead)
Click "Log Call" activity
Enter call duration, notes, next steps
Attach to Deal if discussing purchase
Set follow-up task

This takes 3-5 minutes per call. For a sales rep handling 40 calls/week, that's 2+ hours weekly on manual data entry instead of selling.

Mobile Limitations

Zoho's documentation notes that "calls are not supported in the mobile version of Zoho apps and are supported only in the web applications."

For teams working remotely or in the field, this means you can't make integrated calls from your phone. You're back to regular calls with manual logging afterward (which often doesn't happen).

After-Hours Black Hole

Most click-to-call integrations (JustCall, RingCentral, Zoho Voice) require a human to be available and actively using the system.

After 5 PM? Voicemail. Weekends? Voicemail. During lunch? Voicemail.

Research shows 73% of business calls happen outside standard 9-5 hours. Your prospects call when they have time - evenings, weekends, lunch breaks. Without automatic answering, you're missing three-quarters of your inbound opportunities.

Understanding Zoho's Module System: When to Use Leads, Contacts, or Deals

Before setting up phone integration, you need to understand how Zoho structures customer data.

Leads: First Touch, Not Yet Qualified

Leads in Zoho CRM are for collecting initial information from prospects. Common sources:

Website contact forms
Downloaded whitepapers
Trade show badge scans
Cold call lists
Inbound phone inquiries (first-time callers)

Leads contain basic info: name, company, phone, email, source. You haven't qualified them yet.

Phone integration goal for Leads: When someone calls for the first time, automatically create a Lead record with their phone number, what they asked about, and schedule a follow-up call.

Contacts: Qualified, Active Relationships

Once you qualify a Lead and determine they're worth pursuing, you convert them to a Contact. Contacts are real people you're actively working with.

Contacts also get associated with an Account (the company they represent).

Phone integration goal for Contacts: When an existing customer calls, look up their Contact record by phone number, log the call activity, and update any relevant fields (like "Last Contact Date" or "Interest Level").

Deals: Revenue Opportunities

Deals represent actual sales opportunities with dollar values. A Deal is always linked to a Contact and Account.

Deals have stages: Qualification — Needs Analysis — Proposal — Negotiation — Closed Won/Lost.

Phone integration goal for Deals: When someone calls about an active deal, log the call under that Deal, add notes about objections or next steps, and potentially move the Deal to the next stage based on conversation outcome.

Module Flow Example

First call: Prospect Sarah calls asking about your service — Create Lead record (Sarah Johnson, ABC Corp, interested in Enterprise plan)
Follow-up call: You call Sarah back, qualify her (real budget, real timeline) — Convert Lead to Contact + create Account (ABC Corp)
Sales call: Sarah calls to discuss pricing — Create Deal ($50K, Stage: Proposal) linked to Sarah's Contact
Deal follow-up: Sarah calls with questions — Log call on existing Deal, add notes, move to "Negotiation" stage

Each call needs data in the right place. Manual logging is tedious and error-prone. Automatic integration handles this intelligently.

How NextPhone Maps to Zoho CRM Modules

NextPhone uses HTTP webhooks to push call data to Zoho's API. Here's how it works for each module.

Creating Leads from First-Time Callers

When someone calls your business number and they're not in your system yet:

AI answers: "Thanks for calling Acme Software. How can I help?"
Caller: "I'm interested in your Enterprise plan."
AI collects: Name, company, phone, email, specific need
Call ends
Webhook fires to Zoho's Leads API:

POST https://www.zohoapis.com/crm/v2/Leads
{
  "data": [{
    "Last_Name": "[last_name]",
    "First_Name": "[first_name]",
    "Company": "[company_name]",
    "Phone": "[caller_number]",
    "Email": "[email]",
    "Lead_Source": "Inbound Call",
    "Description": "[call_summary]",
    "Lead_Status": "Not Contacted"
  }]
}

Result: New Lead appears in Zoho with all fields populated. Sales rep gets notification to follow up.

Logging Calls to Existing Contacts

For repeat callers already in your system:

AI checks phone number against Zoho Contacts
Finds existing Contact record
Logs call as Activity under that Contact:

POST https://www.zohoapis.com/crm/v2/Calls
{
  "data": [{
    "Call_Type": "Inbound",
    "Call_Duration": "[call_duration_seconds]",
    "Call_Result": "Connected",
    "Subject": "Inbound call - [call_summary]",
    "Description": "[full_transcript]",
    "Who_Id": "[zoho_contact_id]",
    "Call_Start_Time": "[call_timestamp]"
  }]
}

Result: Call activity logged under Contact. Rep sees full conversation history.

Creating or Updating Deals

When a call is about a purchase:

AI detects buying intent: "What's the pricing for 50 users?"
AI qualifies: Budget ($50K), timeline (Q1), decision authority (yes)
Webhook creates Deal:

POST https://www.zohoapis.com/crm/v2/Deals
{
  "data": [{
    "Deal_Name": "[company_name] - [product_interest]",
    "Amount": "[estimated_deal_value]",
    "Stage": "Qualification",
    "Contact_Name": "[zoho_contact_id]",
    "Closing_Date": "[estimated_close_date]",
    "Description": "Inbound call inquiry: [call_summary]"
  }]
}

Result: Deal created and assigned to sales rep, with all qualification data pre-filled.

Smart Module Routing

NextPhone can intelligently decide which module to update:

New caller + no phone match — Create Lead
Existing phone match + no active deal — Log Call activity on Contact
Existing phone match + mentions pricing/buying — Create Deal linked to Contact
Existing phone match + active deal — Log Call on Deal, update stage if needed

This logic is configured in your webhook rules. No manual decision-making required.

Workflow Automation: Trigger Follow-ups Automatically

Zoho CRM's workflow automation can trigger actions when new records are created or fields are updated.

Example Workflows

Workflow 1: New Lead Auto-Assignment
Trigger: New Lead created (from inbound call)
Condition: Lead Source = "Inbound Call"
Action: Assign to next available sales rep (round-robin)
Action: Send email notification to assigned rep with call details
Action: Create Task: "Follow up on inbound inquiry" (due in 1 hour)
Workflow 2: Hot Lead Fast-Track
Trigger: New Lead created with Deal Amount > $25,000
Condition: Lead Description contains "urgent" or "ASAP"
Action: Assign to senior sales rep
Action: Send SMS to rep: "Hot lead - $50K+ opportunity"
Action: Create Task: "Call back immediately" (due in 15 minutes)
Workflow 3: Deal Stage Progression
Trigger: Call logged on Deal
Condition: Call notes contain "ready to move forward"
Action: Update Deal Stage: "Proposal" — "Negotiation"
Action: Send email to prospect with pricing proposal
Action: Create Task: "Follow up on proposal" (due in 2 days)
Workflow 4: Callback Request Tracking
Trigger: Lead created with Description containing "callback requested"
Action: Create Task for assigned rep with callback time
Action: Send calendar invite to rep
Action: Set reminder 15 minutes before callback time

These workflows eliminate manual follow-up tracking. The AI captures intent during the call ("Can someone call me back tomorrow at 2 PM?"), creates the Lead/Contact with notes, and Zoho's workflow automatically schedules the callback task.

In our analysis of 13,175 calls, 25.4% of callers explicitly requested callbacks. Without automation, research shows 80% of callback requests never happen because reps forget or lose the note. With AI + workflow automation, 100% get scheduled and tracked.

Pricing: SMB-Friendly Options

Let's compare the true cost for a 3-person small business team.

Option 1: Zoho Free Plan + NextPhone

Zoho CRM Free: $0 (up to 3 users, includes Leads/Contacts/Deals)
NextPhone: $199/month (unlimited users, unlimited calls, AI answering)
Total: $199/month
What you get:
All core CRM features (Leads, Contacts, Deals, Activities)
24/7 AI phone answering
Automatic call logging in all modules
HTTP webhook integration (no limitations)
After-hours and weekend coverage
What's missing from Free plan:
Workflow automation (need Standard plan for this)
Blueprint process management (need Professional)
But you can still manually assign tasks based on calls

Option 2: Zoho Standard Plan + NextPhone

Zoho CRM Standard: $14/user/month — 3 = $42/month (includes basic workflow automation)
NextPhone: $199/month
Total: $241/month
Added with Standard plan:
Workflow automation (auto-assign leads, trigger follow-ups)
Mass emails (250/day)
Up to 10 users (room to grow)

This is the sweet spot for most SMBs - full workflow automation + AI answering for under $250/month.

Option 3: Zoho Professional + Zoho Voice

Zoho CRM Professional: $23/user/month — 3 = $69/month
Zoho Voice: Requires Professional plan + additional setup
Total: $69+/month (telephony features included but still manual)
Limitations:
Still requires human to click-to-dial or answer calls
No after-hours automatic answering
Calls only in web app (no mobile support)
Missing 74.1% of inbound calls when team is busy

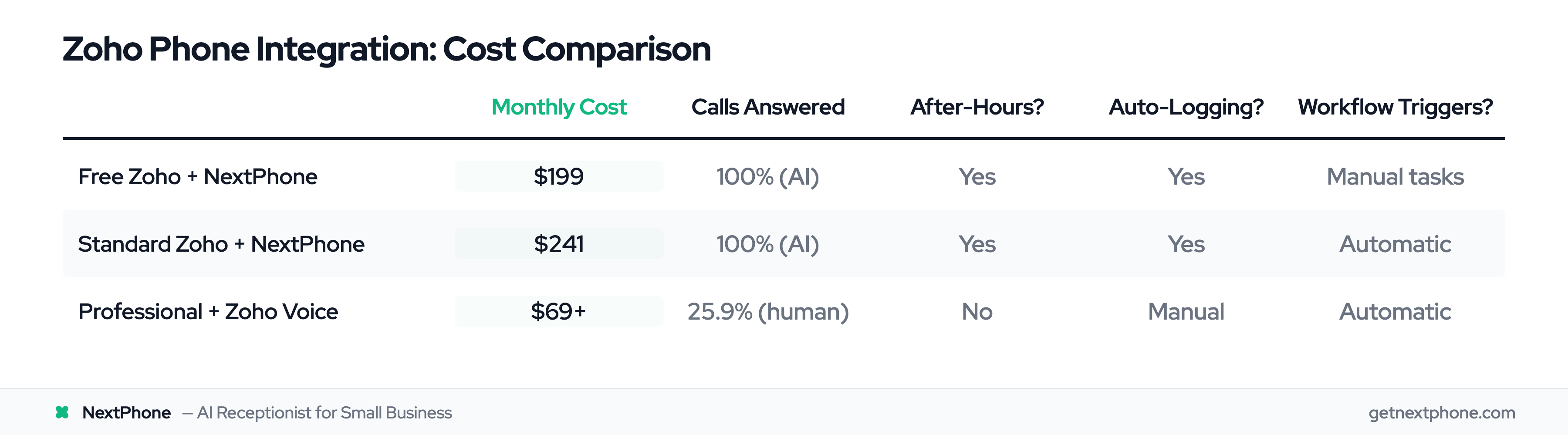

Cost Comparison

Solution	Monthly Cost	Calls Answered	After-Hours?	Auto-Logging?	Workflow Triggers?
Free Zoho + NextPhone	$199	100% (AI)	Yes	Yes	Manual tasks
Standard Zoho + NextPhone	$241	100% (AI)	Yes	Yes	Automatic
Professional + Zoho Voice	$69+	25.9% (human)	No	Manual	Automatic

Winner: Standard Zoho + NextPhone gives you automatic answering, call logging, AND workflow automation for $241/month.

The Professional + Zoho Voice option is cheaper upfront but misses 74.1% of calls (worth $31K/month). That's a terrible trade-off.

How to Set Up NextPhone with Zoho CRM

Setup takes about 15 minutes. Here's the step-by-step process.

Step 1: Get Zoho API Credentials

Log into Zoho CRM
Go to Setup (gear icon) — Developer Space — APIs — API Names
Note your module API names: Leads, Contacts, Deals, Calls
Go to Setup — Developer Space — Self Client
Click "Create New Self Client"
Copy your Client ID and Client Secret
Generate OAuth token (use Zoho's OAuth playground for first-time setup)

Keep your OAuth refresh token secure - this gives API access to your CRM.

Step 2: Configure NextPhone Webhook for Leads

In NextPhone dashboard:

Integrations — Add HTTP Webhook
Name: "Zoho - Create Lead"
Trigger: "After call ends (new caller)"
URL: https://www.zohoapis.com/crm/v2/Leads
Method: POST
Headers:
- Authorization: Zoho-oauthtoken YOUR_ACCESS_TOKEN
- Content-Type: application/json
Body template (from above - maps call data to Lead fields)

Step 3: Configure Webhook for Contacts/Deals

Add additional webhooks for existing customers:

Webhook 2: Log Call on Contact
Trigger: "After call ends (existing phone number match)"
URL: https://www.zohoapis.com/crm/v2/Calls
Maps to Call activity with Contact lookup
Webhook 3: Create Deal
Trigger: "After call with buying intent keywords"
URL: https://www.zohoapis.com/crm/v2/Deals
Maps to Deal with Contact association

Step 4: Configure AI Questions

Tell the AI what to ask during calls:

"What's your name?"
"What company are you with?"
"What service are you interested in?"
"What's your budget range?"
"When are you looking to get started?"

The AI asks these naturally during conversation and extracts structured data for the webhooks.

Step 5: Test the Integration

Make a test call:

Call your NextPhone number
Answer AI's questions (pretend to be prospect)
Provide name, company, interest, budget
Hang up
Check Zoho CRM - new Lead should appear within 30 seconds

Verify all fields populated correctly. If something's missing, adjust your webhook field mapping.

Step 6: Set Up Workflow Automation (Optional)

If using Standard plan or higher:

Zoho CRM — Setup — Automation — Workflow Rules
Create rule: "New Inbound Lead Assignment"
- Module: Leads
- Trigger: Record created
- Condition: Lead Source = "Inbound Call"
- Actions: Assign to round-robin, create follow-up task, send notification

Now every inbound call automatically creates a Lead, assigns it to a rep, and schedules follow-up - zero manual work.

Frequently Asked Questions

Can I use NextPhone with Zoho's free plan?

Yes! The HTTP webhook integration works with any Zoho plan, including Free. You'll have all the call logging and module population features.

The only limitation: workflow automation requires Standard plan ($14/user/month) or higher. On the Free plan, you can still manually create tasks after calls are logged.

Will this work with Zoho's mobile app?

The call logging will - all calls logged via webhook appear in the mobile app just like manual entries.

But making integrated calls from mobile has limitations. Zoho's own documentation notes that native telephony only works in web apps, not mobile. NextPhone solves this differently: it's a cloud phone number that AI answers 24/7, so you don't need mobile integration. Calls come to NextPhone's AI, which logs everything to Zoho.

How does it know whether to create a Lead or update a Contact?

You configure this logic in your webhook triggers:

Trigger 1: "New phone number (no match in Zoho)" — Create Lead
Trigger 2: "Existing phone number match" — Log Call on Contact
Trigger 3: "Existing number + keywords like 'pricing' or 'buy'" — Create Deal

NextPhone checks your Zoho database before deciding which webhook to fire.

Can it integrate with Zoho's Blueprint process management?

Yes, if you're on Professional plan or higher. Blueprints standardize your sales process (e.g., "Every lead must have a discovery call before moving to proposal stage").

When NextPhone logs a call, it can trigger Blueprint transitions. For example:

Call logged — Move Lead from "New" to "Contacted" status
Call with qualified answers — Move Deal from "Qualification" to "Needs Analysis"

Configure this through Zoho's Blueprint rules based on Activity creation.

What happens if someone calls after hours?

AI answers 24/7. There's no "after hours" - every call gets answered, qualified, and logged to Zoho.

If you want certain urgent calls routed to a human after-hours, configure transfer rules:

Keywords like "emergency" or "urgent" — Transfer to on-call rep's mobile
All other calls — AI handles, logs to Zoho, rep follows up next business day

In our analysis, 73% of calls happen outside 9-5. AI captures all of them.

How much does this cost compared to hiring a receptionist?

Receptionist:
Salary: $30,000-35,000/year
Benefits (30%): $9,000-10,500
Total: $39,000-45,500/year
Works: 9-5 weekdays only
NextPhone + Zoho Standard:
Cost: $241/month = $2,892/year
Works: 24/7/365
Savings: $36,108-42,608/year (93-94% cost reduction)

Plus AI never calls in sick, takes vacation, or quits.

Start Capturing Every Zoho CRM Call Today

Zoho CRM powers 300,000+ small businesses, but most are losing 74.1% of inbound calls - worth $31,122/month for a typical team.

Manual call logging wastes hours weekly on data entry instead of selling.

NextPhone integrates with Zoho via HTTP webhooks to:

Answer 100% of calls automatically with AI (even after-hours)
Create Leads from first-time callers
Log Calls on existing Contacts
Create and update Deals based on buying intent
Trigger workflow automation for instant follow-ups
Cost $199-241/month total (less than one receptionist week of pay)

Setup takes 15 minutes. Configure webhooks, map your modules, and AI starts answering immediately.

Stop losing calls to voicemail.

Speak with one of our experts

Book a Call
